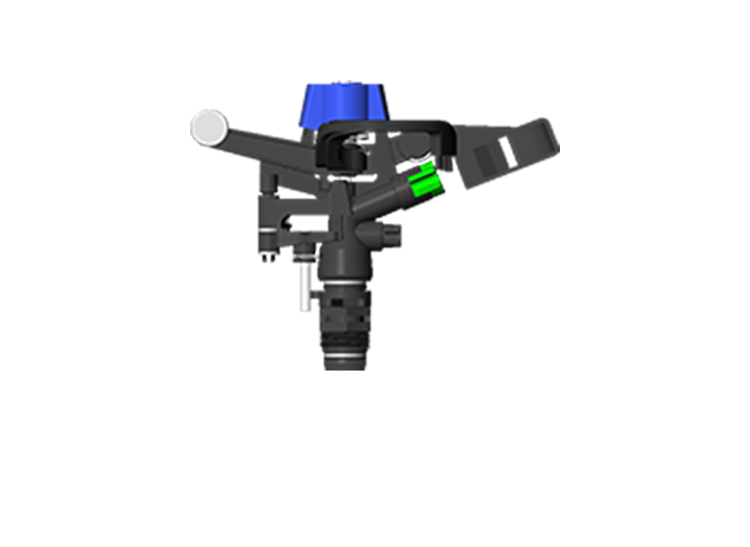

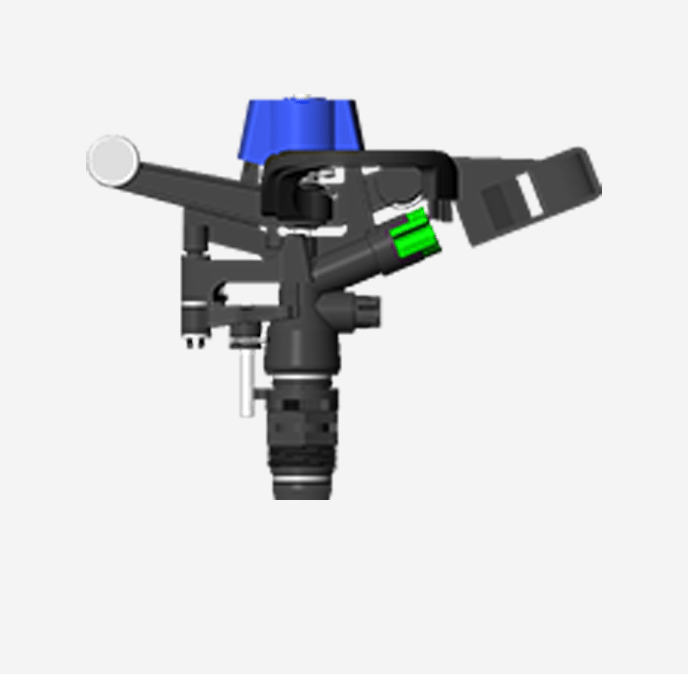

D-Net™ 9575 AA

3/4" impact sprinkler with unique 3D arm and Adjustable Arc for part circle irrigation.

"Ideal sprinkler for edge irrigation"

Application

  • Irrigation

Pressure

  • High
  • Medium pressure

Coverage type

  • Full Coverage: Medium, spacing installation
  • Full Coverage: Large spacing installation

Crop type

  • Field crops

Trajectory angle

  • Normal

Why D-Net™ 9575 AA?

  • Road guard: A simple adjustable arc enables to modify manually, the sprinkler from 360 degrees to any part-circle watering, for irrigation on the edges of the field.
  • Very high water distribution uniformity & Higher yield: Innovative 3D diffusion arm, ensures excellent water distribution uniformity, resulting uniform crop yield.
    Special design of the D-Net™ 9575 AA, guarantees maximum water-use efficiency.
  • Robust product & Long lasting performances: D-Net ™ 9575 AA has a special design that makes the sprinkler resistant to wear and ensures high performance throughout the long product life.
  • Reduced labor cost & Easy maintenance: Versatile installation. Can be installed on solid sets or on removable field stands.
    Easy to maintain. A special nozzle key is designed to allow simple cleaning of the nozzles.
    D-Net™ 9575 AA is made of UV-protected materials, making it durable under all climate conditions and with any applied

Specifications

  • 1/2" Impact sprinkler with unique 3D arm and Adjustable Arc, for part circle coverage irrigation.
  • 2 different flow rates: 850, 1030 L/H
  • Nominal flow rate at: 3.0 bar
  • Recommended pressure range: 2.5 - 4.0 b bar
  • Water Trajectory angle: 24 Degrees
  • Water distribution is achieved by a single front nozzle and the setup of the adjustable arc.
  • 1 types of inlet connector: 3/4” male threaded
Specifications

Other D-NET™ models

D-NET™ 6550

D-NET™ 6550

Designed for under canopy irrigation with a low water trajectory angle, this sprinkler ensures a very high level of distribution uniformity thanks to its innovative 3D arm.

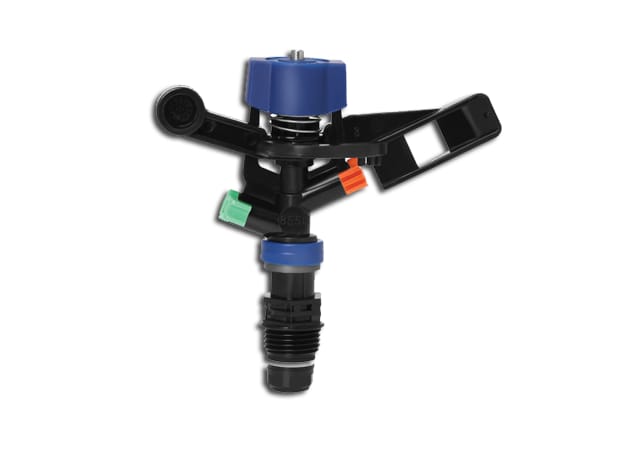

D-NET™ 8550

D-NET™ 8550

Thanks to its innovative 3D arm, this 1/2" impact sprinkler offers maximum water-distribution uniformity.

D-NET™ 8550 F.R.

D-NET™ 8550 F.R.

D-Net™ 8550 F.R. 1/2" impact sprinklers, with 3D diffusion arm and unique flow regulated nozzles guarantee excellent crop uniformity and consistency for field crops and vegetables irrigation throughout the field, with sprinkler spacing up to 12x14 meters.

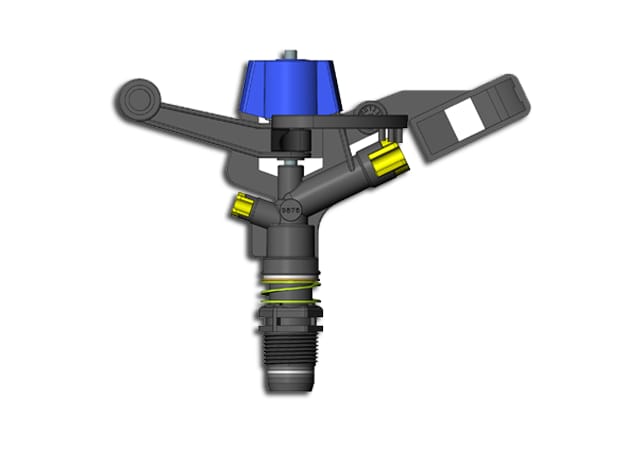

D-NET™ 9575
