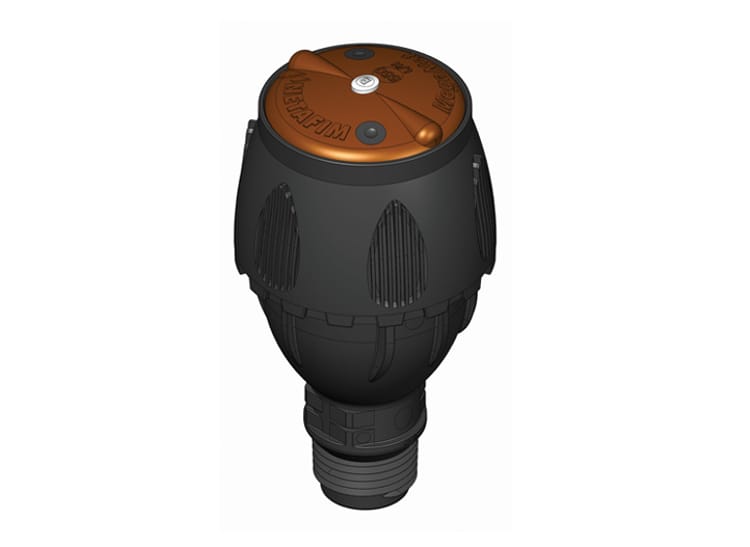

MegaNet™ 15D

High-performance encapsulated and protectedimpact sprinkler for under canopy irrigation

With its innovative “fortress” design and low jet trajectory, the MegaNet™ 15D impact sprinkler gives you highly uniform under-tree irrigation. Perfectly suited for crop germination, frost mitigation and orchard cooling.

15-degree water trajectory angle for under-canopy irrigation of banana, palm trees, and shade/net houses with spacing up to 10 x 12 meters
Prevents performance issues caused by insects, poor water quality or field machine damage

Application

Irrigation
Frost mitigation
Orchards cooling
Orchards humidification
Leaves Dust cleaning

Pressure

Medium pressure

Coverage type

Full Coverage: Small spacing installation
Full Coverage: Medium, spacing installation

Crop type

Field crops
Orchards

Trajectory angle

Medium

Why MegaNet™ 15D?

More uniform yields: MegaNet’s symmetric structure creates two equal water jets that optimize the sprinkler’s balance to deliver even better water distribution uniformity.
Keeps on performing: Innovative encapsulated design with unique pop-up mechanism, that opens only during operation, extends the life of the nozzle and other moving parts by preventing insects and dirt particles from obstructing the sprinkler.
Anti-clogging: Integral filter ensures clean water inside the nozzle; this filter can be easily cleaned if needed.
Extremely resilient: Manufactured with UV-resistant materials that can withstand chemicals, fertilizers, and sun exposure.
Versatile installation: Installs on solid sets or on removable field stands.

Specifications

7 different nominal flow rates: 200, 250, 350, 450, 550, 650, 750 l/h. Nominal flow rates at 2.3 bar pressure
Recommended working pressure: 2.0 to 3.0 bar (at the sprinkler head).
Recommended filtration: 400 micron / 40 mesh
Water trajectory angle: 15 degrees
Inlet connection: 1/2 “male thread, 20mm ISO inlet (for gluing to PVC riser)
Color-coded locking pins and caps for easy identification

Downloads

Product sheets

Netafim MegaNet™ 15D Technical Product Sheet (PDF)

Other MegaNet™ models

MegaNet™ 24D

MegaNet™ 24D rotating impact sprinklers with pop-up mechanism deliver long-lasting water distribution uniformity. Ideal for open fields and nurseries with spacing up to 10 x12 meters.
