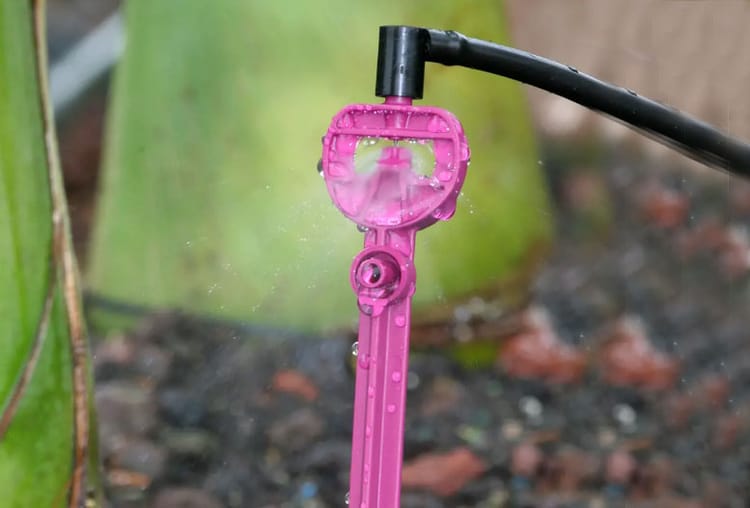

PC Spray Stake

Netafim PC Spray Stakes feature pressure compensation and include a check valve for enhanced control of water and fertilizer distribution. These stakes ensure efficient spray patterns that saturate the soil surface to optimize water retention, substantially reduce misting, and prevent wind drift. With their straightforward design, convenient close-off mechanism, and resistance to sunlight, fertilizers, and chemicals, they offer long-lasting reliability.

Why PC Spray Stake?

  • Uniform water and fertilizers distribution: Efficiently wet the soil mix with a downward-angled spray pattern, typically supplied as a pre-assembled unit including a Pressure Compensated dripper (PCJ), a 3x5 micro tube, elbow adapter, and Spray Stake.
  • Uniform wetting pattern over the entire surface: Assembled with a PCJ dripper to ensure water uniformity for every pot (depending on shut-off pressure).
  • Secured anti-drain CNL mechanism: Can be assembled with PCJ with CNL feature to prevent draining at the end of irrigation cycle and ensuring readiness for the next irrigation cycle.

Specifications

  • Suitable for different PCJ flow rates: 12, 20, 25, 30, 35, 40l/h
  • Recommended pressure range: 1.5-4.0 bar (1.8-4.0bar in the 40l/h model)
  • 2 types of spray pattern: Single-one side, Double-two sides
  • Stake color coded for easy identification of the flow rate
  • Made of UV-protected materials, durable to all climate conditions and nutrients injected in agricultural applications.
  • Recommended filtration: 130 micron / 120 mesh
