SuperNet™ Dynamic

Uniform water and nutrient distribution for every kind of orchard, no matter the topography

SuperNet™ Dynamic is a robust flow-regulated micro-sprinkler that enables orchard owners to achieve perfect crop uniformity over areas of varied topography, with minimal maintenance and risk of clogging. Choose from an extensive range of super-short, short, medium and long ranges to serve different tree crops and root volumes.

Flow regulation mechanism ensures uniform water and nutrient coverage in orchards with varied topography
Industry’s largest water passages and anti-insect mechanism prevents clogging and reduces maintenance costs.

Application

Irrigation
Frost mitigation
Orchards cooling
Orchards humidification
Leaves Dust cleaning

Pressure

Medium pressure
Low Pressure

Coverage type

Localized
Strip

Crop type

Orchards

Trajectory angle

Normal
Medium
Low

Why SuperNet™ Dynamic?

0% flow variation: Special flow regulation mechanism ensures uniform distribution of water and nutrients, no matter the elevation change and the sprinkler's inlet pressure (within specific pressure ranges).
Clogging resistance: Flow path 30% larger than industry standard protects against clogging to ensure an optimal water pattern, year after year.
Insect-protected: Pop-up mechanism keeps nozzle insect and spider-free, eliminating the need for flushing, and minimizing field repairs and maintenance.
Long-lasting performance: Thanks to a simple modular and clog-resistant design, and EverSpin™ upper bearing that protects against bearing wear and tear.
In-field resilience: Manufactured with tough plastic materials that can withstand agrochemicals, fertilizers, and prolonged sun exposure.
ISO 8026 standards: SuperNet™ micro-sprinklers meet ISO 8026 standards (SI 1406) with production certified by (SII).

View the specifications of SuperNet™ Dynamic models

SuperNet™ SSR (Super short)

Especially suitable for extra-narrow planted orchards, SuperNet™ SSR creates small wetted diameters (2.0-2.5m).

SuperNet™ SR&SRD (Short)

For irrigation of densely planted orchards, SuperNet™ SR&SRD creates small wetted diameters (SR – 3.5-5.0m SRD: 1.8-2.0m).

SuperNet™ MR&MRD

Suitable for mid-size planted orchards, SuperNet™ MR&MRD creates medium wetted diameters (MR 4.5-6.0m; MRD 2.5-3.0m).

SuperNet™ LR&LRD

Suitable for planted orchards with large root volumes and wide tree spacing. SuperNet™ LR&LRD creates large wetted diameters (LR 4.5-8.0m; LRD 1.5-2.0m).

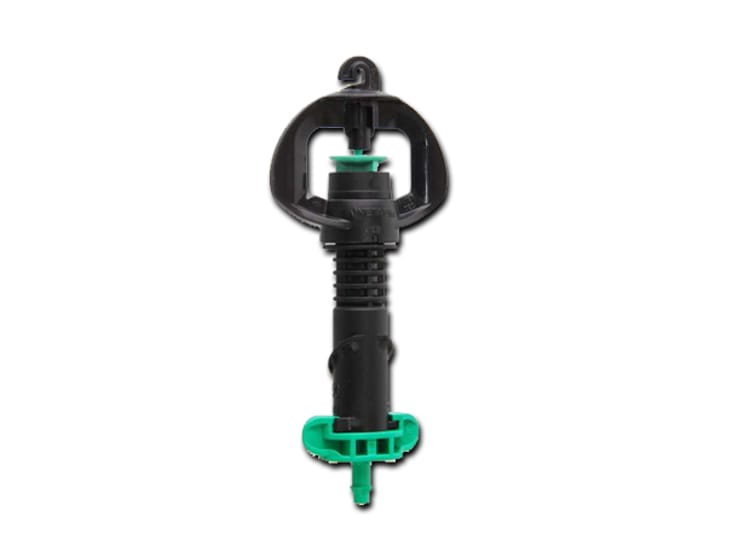

SuperNet™ SSR

Especially suitable for extra-narrow planted orchards, SuperNet™ SSR creates small wetted diameters (2.0-2.5m). A revolving irrigation rotor, designed for super short ranges, applies water and nutrients close to the root zone while keeping the space between the rows dry. Specially designed for orchards with sloping terrain.

Flow regulated micro-sprinkler with 3 different flow rates: 30, 35, 40 l/h. Pressure range 1.5 to 4.0 bar
5 types of inlet connectors: Barb, Self-tapping, Press fit, 3/8” male threaded, 1/2” male threaded
2 types of upper bearing: Standard for normal water Everspin™ for harsh conditions

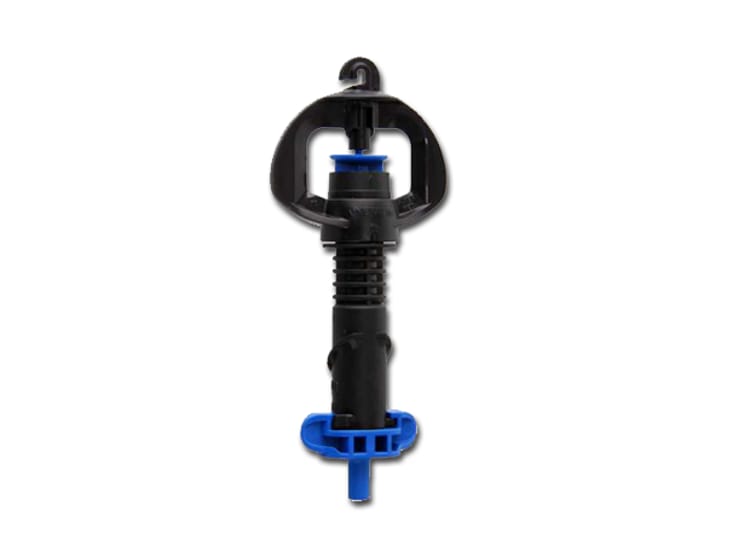

SuperNet™ SR&SRD (Short)

For irrigation of densely planted orchards, SuperNet™ SR&SRD creates small wetted diameters (SR – 3.5-5.0m SRD: 1.8-2.0m).

The SR model features a revolving irrigation rotor suited to short ranges, leaving dry strips between rows while keeping water and fertilizer close to the root zone. SuperNet™ SRD features a two-stage rotor with a unique stream deflector that allows you to adjust the wetted diameter as the tree grows. At first, the rotor with the deflector concentrates water coverage on the area near the young tree. When the tree matures and the root zone is larger, the stream deflector can be broken-off the rotor to enable an extended irrigation diameter. Specially designed for orchards with uneven topographies.

Flow regulated micro-sprinkler with 10 different flow rates: 20, 28, 30, 35, 40, 50, 58, 70, 90, 110 l/h
Pressure range: 1.5 to 4.0 bar
5 types of inlet connectors: Barb, Self-tapping, Press fit, 3/8” male threaded, 1/2” male threaded
4 types of upper bearing: Standard for normal water, Everspin™ for harsh conditions, Spring for “upside down” application and Everspin™ + Spring for “upside down” application in harsh water conditions

SuperNet™ SR&SRD | Micro-sprinkler systems | Netafim

SuperNet™ MR&MRD | Micro-sprinkler systems | Netafim

SuperNet™ MR&MRD (Medium)

Suitable for mid-size planted orchards, SuperNet™ MR&MRD creates medium wetted diameters (MR 4.5-6.0m; MRD 2.5-3.0m).

The MR model features a revolving irrigation rotor for medium ranges that applies water and fertilizers close to the root zone, while keeping dry strips between rows.

SuperNet™ MRD features a two-stage rotor with a unique stream deflector that allows the wetted diameter to be changed according to the tree's growth. At first, the rotor with the deflector concentrates water coverage on the area near the young tree. When the tree grows, and the root zone expands, the stream deflector can be broken-off the rotor to enable a wider irrigation diameter. Specially designed for orchards on sloping terrain.

Flow regulated micro-sprinkler with 8 different flow rates: 20, 28, 30, 35, 40, 50, 58, 70 l/h
Pressure range: 1.5 to 4.0 bar
5 types of inlet connectors: Barb, Self-tapping, Press fit, 3/8” male threaded, 1/2” male threaded
2 types of upper bearing: Standard for normal water and Everspin™ for harsh water

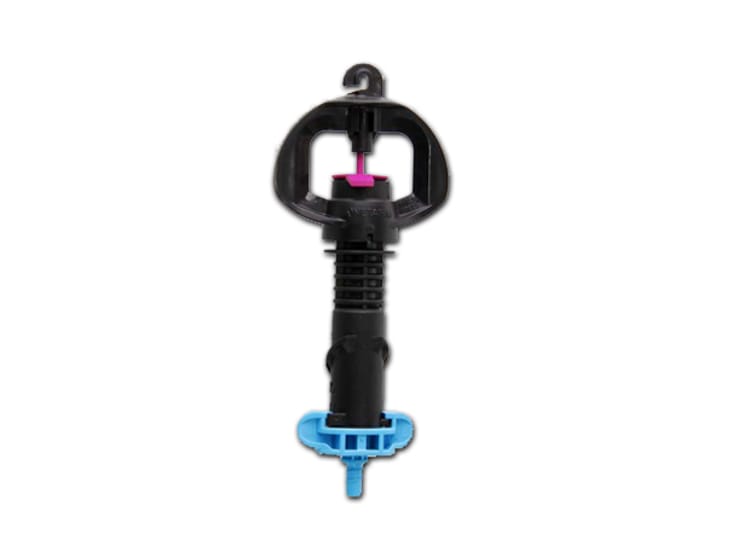

SuperNet™ LR&LRD (Long)

Suitable for planted orchards with large root volumes and wide tree spacing. SuperNet™ LR&LRD creates large wetted diameters (LR 4.5-8.0m; LRD 1.5-2.0m).

The LR model features a long-range revolving irrigation rotor that delivers water and fertilizers close to the root zone, while leaving dry strips between rows.

SuperNet™ LRD features a two-stage rotor with a unique stream deflector that allows the wetted diameter to be adjusted according to tree growth. At first, the rotor with the deflector concentrates water coverage on the area near the young tree. As the tree grows, and the root zone becomes larger, the stream deflector can be broken-off the rotor to enable a wider irrigation diameter. Specially designed for orchards with challenging topographies.

Flow regulated micro-sprinkler with 10 different flow rates: 20, 28, 30, 35, 40, 50, 58, 70, 90, 110 l/h
Pressure range: 1.5 to 4.0 bar
5 types of inlet connectors: Barb, Self-tapping, Press fit, 3/8” male threaded, 1/2” male threaded
2 types of upper bearing: Standard for normal water and Everspin™ for harsh water

Downloads

Product sheets

Other SuperNet™ models

SuperNet™ UD

SuperNet™ UD flow-regulated “upside down” mounted micro-sprinkler, keeps the ground clear preventing sprinkler damage by field machinery.

SuperNet™ GS

SuperNet™ GS flow-regulated micro-sprinkler for full-field overlap in any topography

SuperNet™ JET

SuperNet™ JET flow-regulated sprinkler with long-lasting performance against sand

SUPERNET™ JET 20

Static low flow micro-sprinkler. Specially designed for harsh water, containing large amounts of sand thus causing excessive wear of standard rotating swivel.
