DNet 0950

D-Net™ 0950

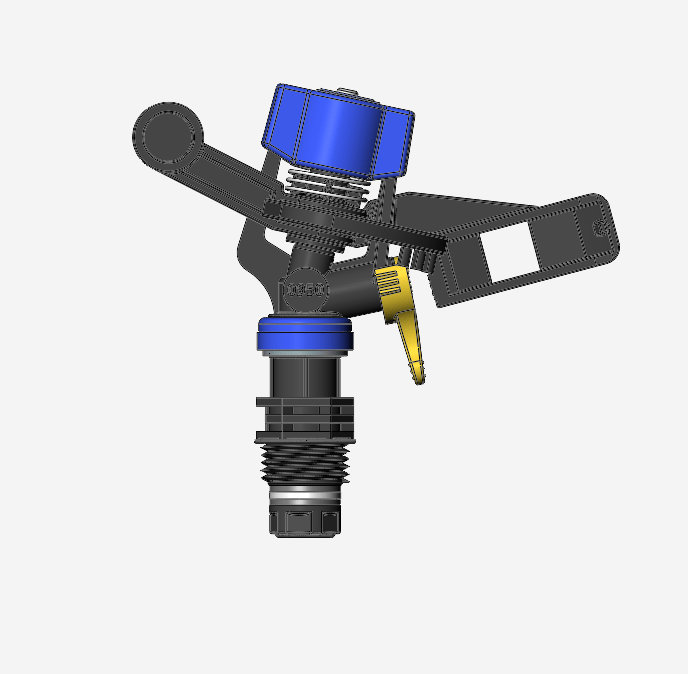

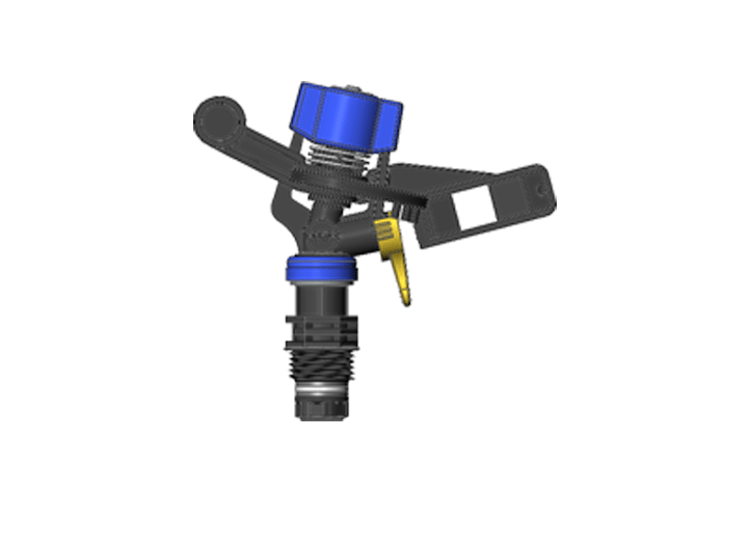

VERY LOW TRAJECTORY IMPACT SPRINKLER FOR UNIFORM UNDER-CANOPY IRRIGATION

With its low water trajectory angle, D-Net™ 0950 is ideally suited for precise under canopy irrigation of banana or oil palm plantations up to 10 x 10 meters or field crops with windy conditions.

Application

  • Irrigation

Pressure

  • Medium pressure
  • Low Pressure

Coverage type

  • Full Coverage: Medium, spacing installation
  • Full Coverage: Small spacing installation

Crop type

  • Field crops
  • Orchards

Trajectory angle

  • Low

Why D-Net™ 0950?

  • High water distribution uniformity & Higher yield: Innovative 3D diffusion arm, ensures relatively high water distribution uniformity, resulting uniform crop yields.
    The lower trajectory angle of the water prevents evaporation to the air in areas with winds, and guarantees maximum water-use efficiency.
  • Robust product & Long lasting performances: D-Net ™ 0950 has a special design that makes the sprinkler resistant to wear and ensures high performance throughout the long product life.
  • Reduced labor cost & Easy maintenance: Versatile installation. Can be installed on solid sets or on removable field stands.
    Easy to maintain. A special nozzle design, allows simple cleaning of the nozzle even under pressure.
    D-Net™ 0950 is made of UV-protected materials, making it durable under all climate conditions and with any applied.

Specifications

  • 1/2" impact sprinkler with unique 3D arm and 9.0 degrees water trajectory angle, for full coverage installation with spacing up to 10X11 meters.
  • 3 different flow rates: 355, 400, 510 L/H
  • Nominal flow rate at: 2.5 bar
  • Recommended pressure range: 2.0 - 3.0 b bar
  • Water Trajectory angle: 9.0 Degrees
  • Water distribution is achieved by a single front nozzle.
  • 1 types of inlet connector: 1/2” male threaded
Specifications

Other D-NET™ models

D-NET™ 6550

D-NET™ 6550

Designed for under canopy irrigation with a low water trajectory angle, this sprinkler ensures a very high level of distribution uniformity thanks to its innovative 3D arm.

D-NET™ 8550

D-NET™ 8550

Thanks to its innovative 3D arm, this 1/2" impact sprinkler offers maximum water-distribution uniformity.

D-NET™ 8550 F.R.

D-NET™ 8550 F.R.

D-Net™ 8550 F.R. 1/2" impact sprinklers, with 3D diffusion arm and unique flow regulated nozzles guarantee excellent crop uniformity and consistency for field crops and vegetables irrigation throughout the field, with sprinkler spacing up to 12x14 meters.

D-NET™ 9575

D-NET™ 9575

D-Net™ 9575 impact sprinklers deliver industry-leading water distribution uniformity and suit field crops with spacing up to 15 x 18 meters.

D-Net™ 9575 AA

D-Net™ 9575 AA

3/4" impact sprinkler with unique 3D arm and Adjustable Arc for part circle irrigation. "Ideal sprinkler for edge irrigation"

D-Net™ 8550 AA

D-Net™ 8550 AA

1/2" impact sprinkler with unique 3D arm and Adjustable Arc for part circle irrigation. "Ideal sprinkler for edge irrigation"
