Pulsar™ with CoolNet Pro™

Pulsar™ + CoolNet Pro™

PRESSURE COMPANSATED EMITTER FOR COOLING AND HUMIDIFICATION IN UPSIDE DOWN INSTALLATION

Application

  • Protected Crops Humidification
  • Protected Crops Cooling
  • Rooting

Pressure

  • Medium pressure

Coverage type

  • Full Coverage: Small spacing installation

Crop type

  • Protected crops

Trajectory angle

  • Medium

Why Pulsar™ + CoolNet™ Pro?

  • Simple operation: Pulsar™ + CoolNet™ Pro design to provide several pulses per minute, according to the selected flow rate, ensure continuous water distribution over a large area in full coverage

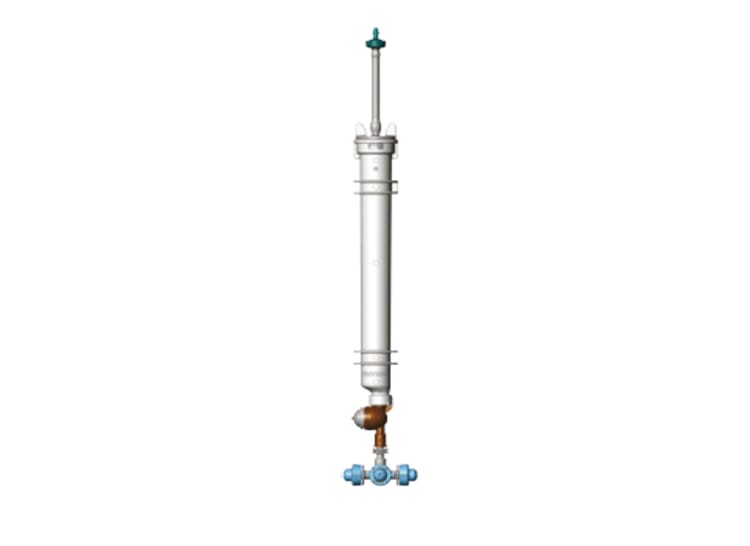

  • Pressure compensated: Pulsar™ + CoolNet™ Pro is a Pressure compensated device with static micro-emitter ensures equal amounts of water are delivered over a pressure range, with high uniformity of water distribution along the laterals. It consists of a Pressure Compensated dripper, a micro tube, a Pulsar chamber with an air bag inside, an Anti Drain valve and CoolNet Pro head.
  • Easy installation & maintenance: Pulsar™ + CoolNet™ Pro is designed for upside-down installation.
    The product is modular and can be disassembled easily for maintenance
  • Long-lasting performance: The product is made of plastic materials resistant to standard nutrients used in agricultural

Specifications

  • 5 different flow rates: 8, 12, 15 L/H
  • Minimum pressure at the AD valve: 3.5 bar for Anti Darin Valve with purple pin
  • Pressure regulation range: 3.5-4.0
  • micro-emitter type: CoolNet Pro 14.0X4 cross model
  • Pulse operation: The pulse on-time and off-time is depended on the dripper flow rate and can't be contoller by system controller as done with standalone CoolNet Pro.
  • Installation recommendations: 3.0X3.0m rectangular pattern, as high it is possible, all the emitters at the same level. *Upside installation
