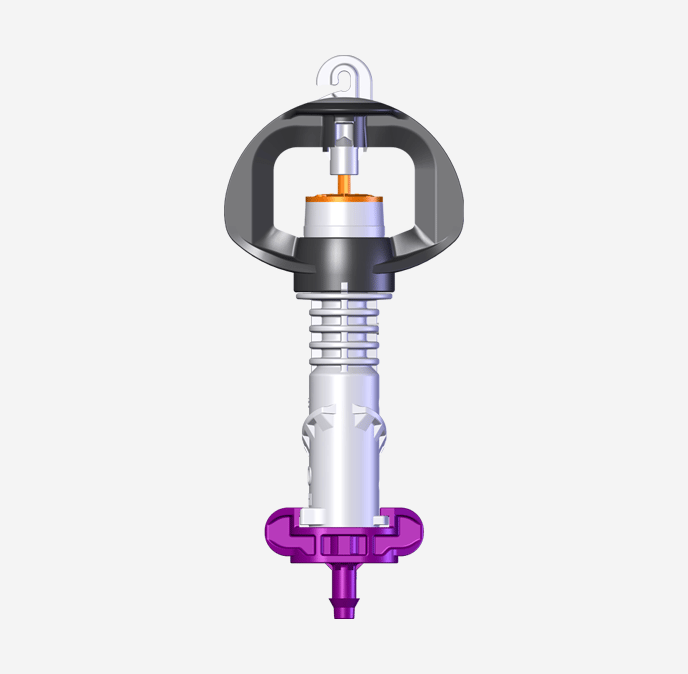

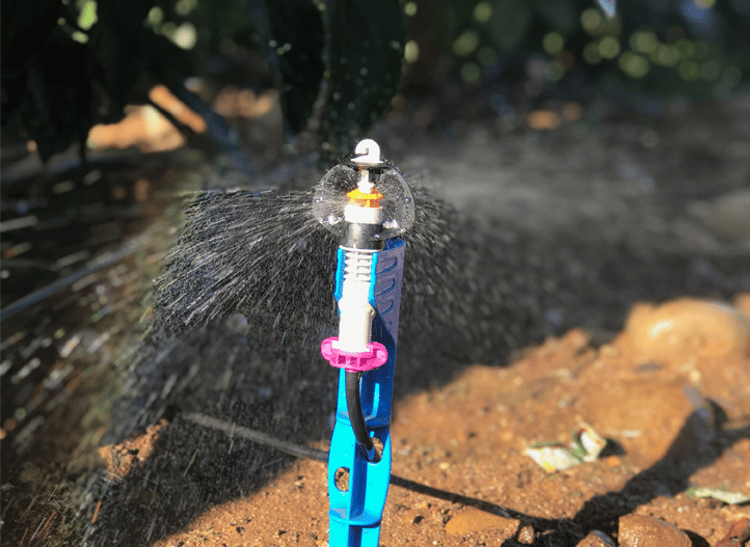

SuperNet™ JET 20

JET IRRIGATION WITH 20 L/H NOZZLE

The SuperNet™ Jet 20 is designed for harsh water, containing large amounts of sand thus causing excessive wear of standard rotating swivel. It’s internal shape, has special design allowing the micro-emitter to work in low flow rate.

Static low flow micro-sprinkler. Specially designed for harsh water, containing large amounts of sand thus causing excessive wear of standard rotating swivel.

Application

  • Irrigation

Pressure

  • Medium pressure
  • Low Pressure

Coverage type

  • Localized

Crop type

  • Orchards

Trajectory angle

  • Medium

Why SuperNet™ JET 20?

  • Ensures higher crop uniformity: Thanks to a unique design of pressure compensation mechanism and special design of the sprinkler swivel and water channel.
  • Achieves optimal results in a varied topography area: With a unique pressure compensated mechanism, the SuperNet™ JET 20 ensures uniform water and nutrient distribution around the tree, regardless of sprinkler’s inlet pressures (within pressure range).
  • Reduced maintenance and higher reliability & longevity: The static Jet 20 defloctor technology is desinged for low flow requirement and applications with harsh water, contiaing large amount of sand thus causing excessive wear of the standard dynamic swivel.
    Anti-ant mechanism keeps the swivel closed and prevents insect penetration into the area of the micro sprinkler nozzle.
    Special row materials made the SuperNet resistant to all agrochemicals & weather conditions.

Specifications

  • JET 20 is a static deflector for irrigation with harsh water conditions and low flow requirements.
  • 1 flow rate: 20 l/h. (Flow rate within Pressure range).
  • Pressure range: 1.5-4.0 bar.

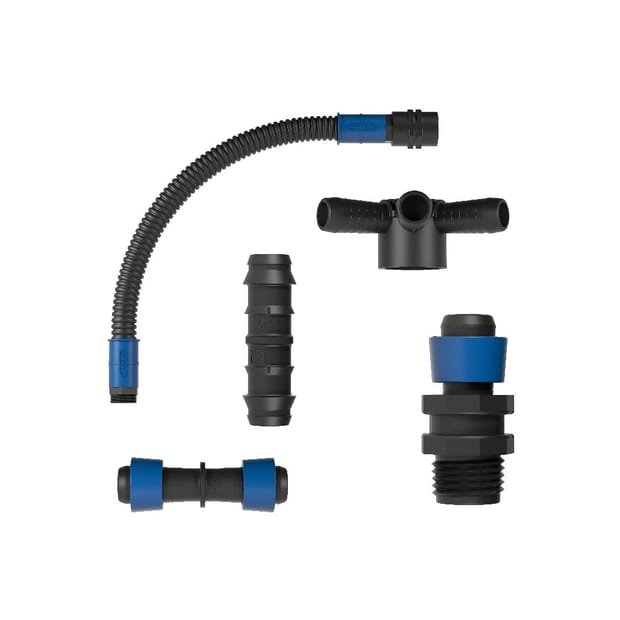

  • 3 types of inlet connectors: Barb, Self-tapping, Press fit
  • Special upper bearing: STUB = Square hole upper bearing, holds the deflector from spinning.
  • 3 types of static deflectors: 180 degrees (6 jets), 90 degrees (4 jets), FS flat spray deflector.
  • JET 20 deflector color is Orange & Flow regulation tube color is Gray.
Specifications
